Manufacturer of professional
karaoke equipment
SE 200D
Evolution Pro 2 - karaoke machine for club
for large karaoke clubs
Order
Order
Karaoke system Evolution Pro2
Specification and equipment
Evolution Pro2 is a professional karaoke system for your business: a karaoke club, restaurant, or cafe.
Instructions for the Evolution Pro2 karaoke system
 View
Evolution Pro2 Specs

What's in the box?

Karaoke system Evolution Pro2
Karaoke system Evolution Pro2
TRS 6.3-TRS 6.3 balanced stereo audio cable, 2 pcs.
TRS 6.3-TRS 6.3 balanced stereo audio cable, 2 pcs.
Detachable external power cable
Detachable external power cable
HDMI cable
HDMI cable

Sizes and weight

In the box

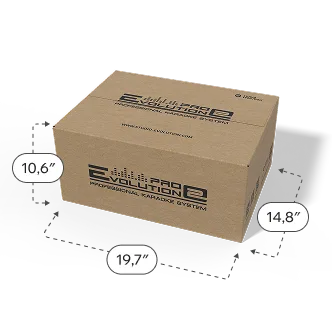

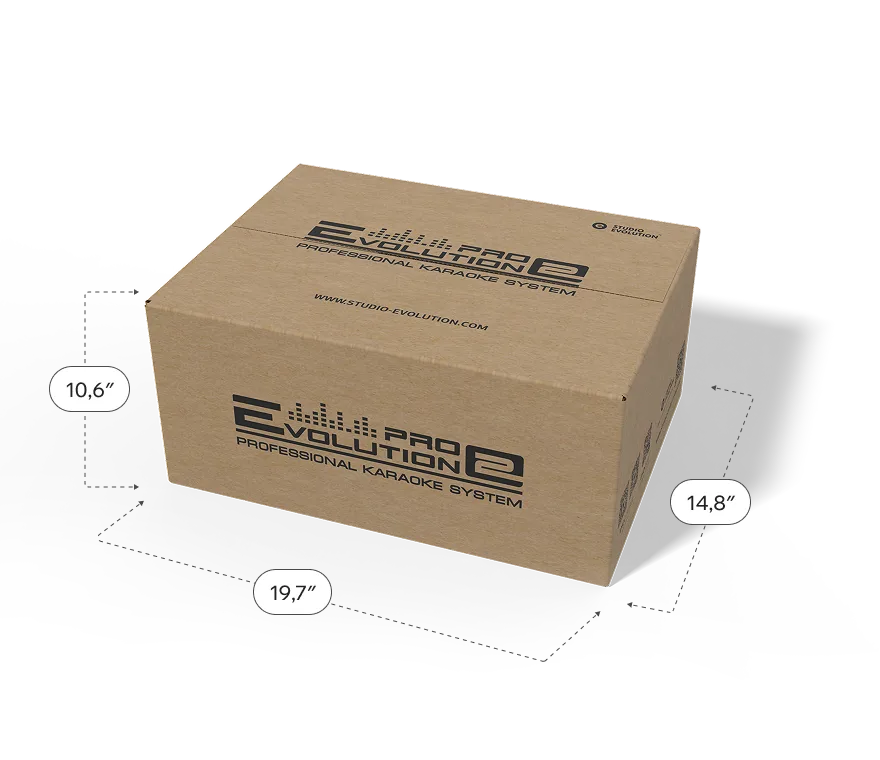

Weight of karaoke system in the box: 21,6 lb Weight of karaoke system in the box: 21,6 lb
Weight of karaoke system in the box: 21,6 lb.
Without box

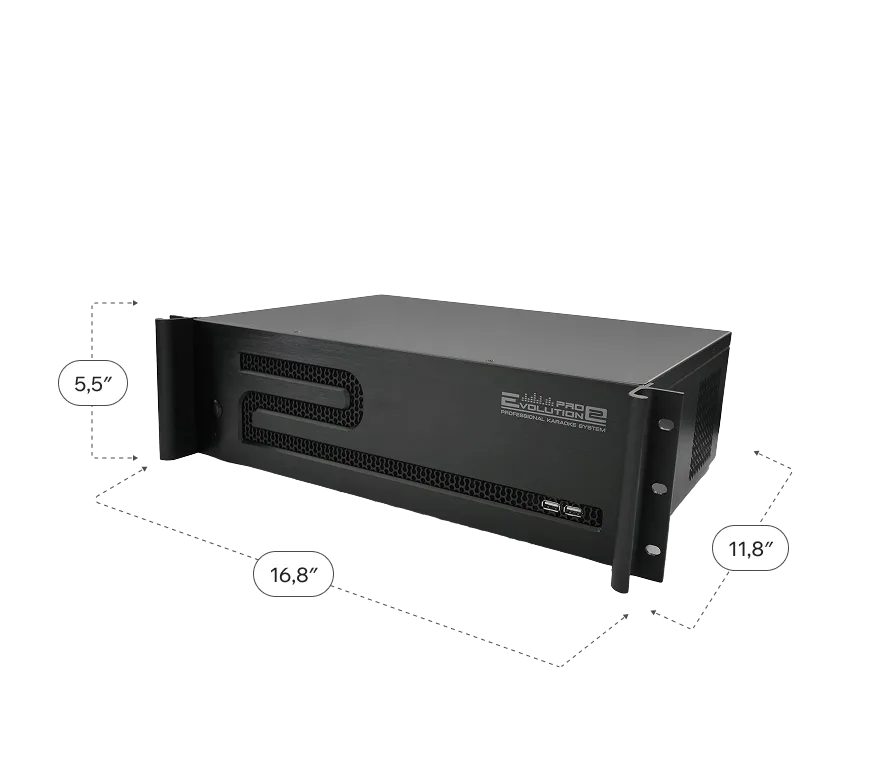

Weight of karaoke system without the box: 15,9 lb. Weight of karaoke system without the box: 15,9 lb.
Weight of karaoke system without the box: 15,9 lb.
Technical Specifications
Supported fileformats
Video:
MOV, AVI, MPEG, MP4, MKV
Audio:
WAV, OGG, MP3
Graphics:
PNG, JPG
Audio
Input audio signal standards:
Analog: TRS 6.3-TRS 6.3 balanced stereo, 3 pcs.
Output audio signal standards:
Analog: TRS 6.3-TRS 6.3 balanced stereo, 3 pcs.
Digital signal sampling rate:
32 - 192 kHz
Analog signal sampling rate:
8 - 192 kHz
DAC/ADC bit depth:
24 bit
USB
Quantity:
8
Connector type:
USB A
Version:
2.0, 3.0
Supported USB drives:
USB flash drive, USB hard drive, USB card reader
File system:
FAT32, NTFS
Inputs
Number of microphone inputs:
2
Ability to adjust microphone signal level:
Yes
Maximum microphone input gain:
46 dB
Maximum input amplitude:
+1.5 dBV (1.2 V RMS)
Input signal-to-noise ratio:
113 dB
Dynamic range:
113 dB
Harmonic distortion + noise:
0.0006 %
Frequency response (+ / - 0.5 dB):
80 Hz - 80 kHz
Channel crosstalk:
-130 dB
Input impedance:
4.7 kOhm
Audio ADC:
AKM AK5385B
Outputs
Output signal-to-noise ratio:
108 dB
Dynamic range:
109 dB
Harmonic distortion + noise:
0.0023 %
Frequency response (+ / - 0.5 dB):
20 Hz - 80 kHz
Channel crosstalk:
-105 dB
Output impedance:
4.7 kOhm
Audio DAC:
AK4358
Video
Output video signal standards:
HDMI, DVI, VGA, Composite (5 pcs.)
Maximum screen resolution:
1920*1080", 60 Hz (1080 p)
System
Operating system:
Linux Evolution
Total hard drive capacity:
2 TB
LAN (Ethernet) port:
Yes
Ethernet speed:
100 Mbit/s
Wi-Fi:
No
SATA 3.0:
Yes
Other
Power supply:
~220 W ±10% 50 Hz ±1 Hz
Power consumption:
550 W
Shipping box dimensions (W × H × D), mm:
507 × 255 × 470
Device dimensions (W × H × D), mm:
420 × 145 × 300
Net weight:
10.8 kg
Gross weight:
12.5 kg
Operating temperature range:
+5 - +40 ºC
Humidity:
10 - 80 %

Apps

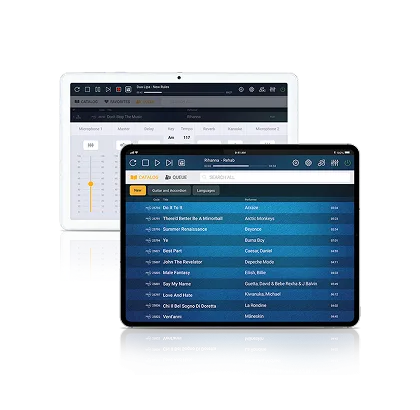

EvoControl

App Store Google Play
EvoControl
Installs on iPad and Android tablets*. Designed to control EVOBOX Club, Evolution Pro2 club systems and home karaoke systems.

The app allows you to search for and play songs, adjust vocal effects and backing tracks, and manage the playback queue.

EvoClub User

App Store Google Play
EvoClub User
The app can be installed on the smartphones of karaoke club visitors. It allows karaoke singers to search for songs in the online catalog, create a list of favorite songs, and send requests to the karaoke host from their smartphone.

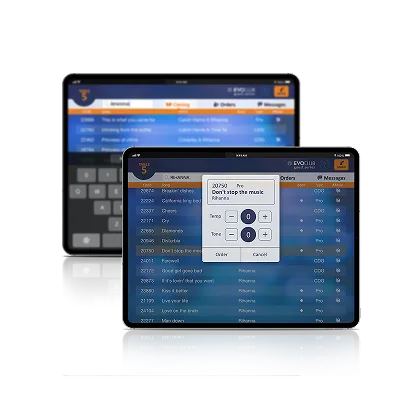

EvoClub Guest

App Store Google Play
EvoClub Guest
The app is installed on the club's tablets, which are used by visitors.

It allows guests to search for and order songs online, as well as exchange messages with other club visitors and the sound engineer.
Evolution Pro 2 - karaoke machine for club
Professional karaoke equipment - Evolution Pro2
5.0
Item: EVOPRO2
In Stock
4,300
$
Excl. VAT
Order
